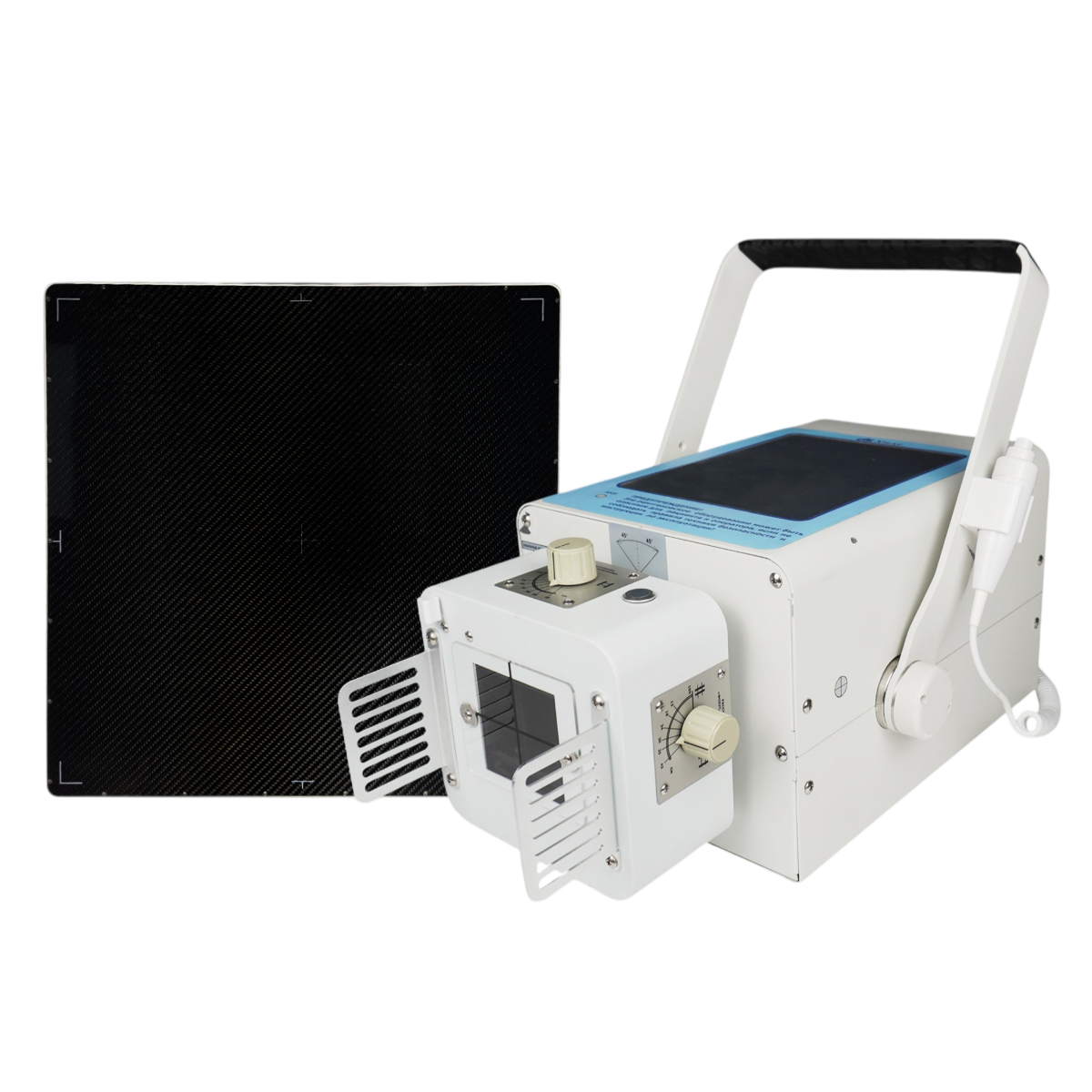

DS.Xray 8010tb portable X-ray unit

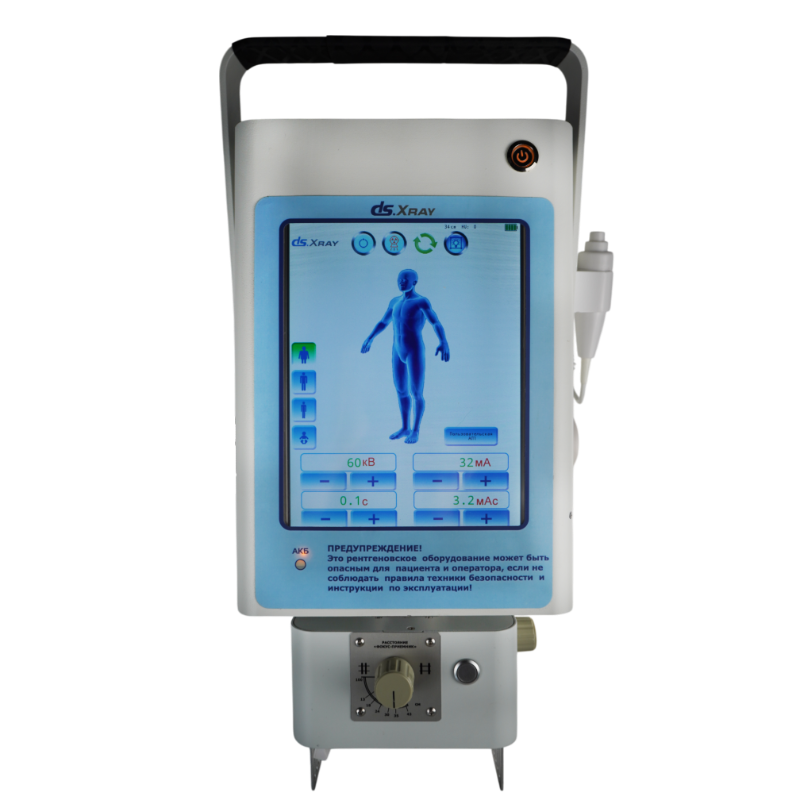

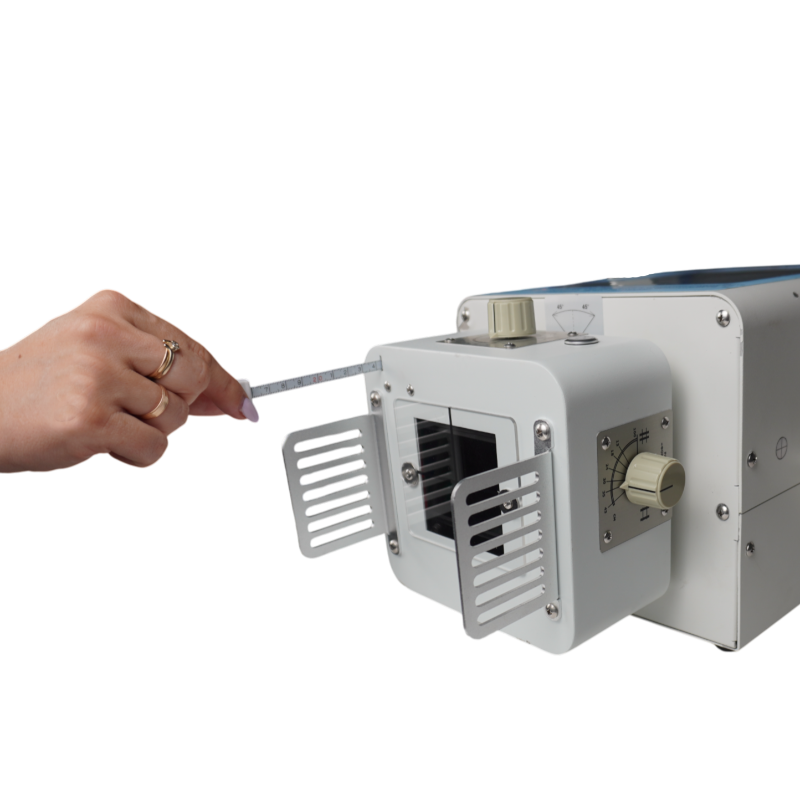

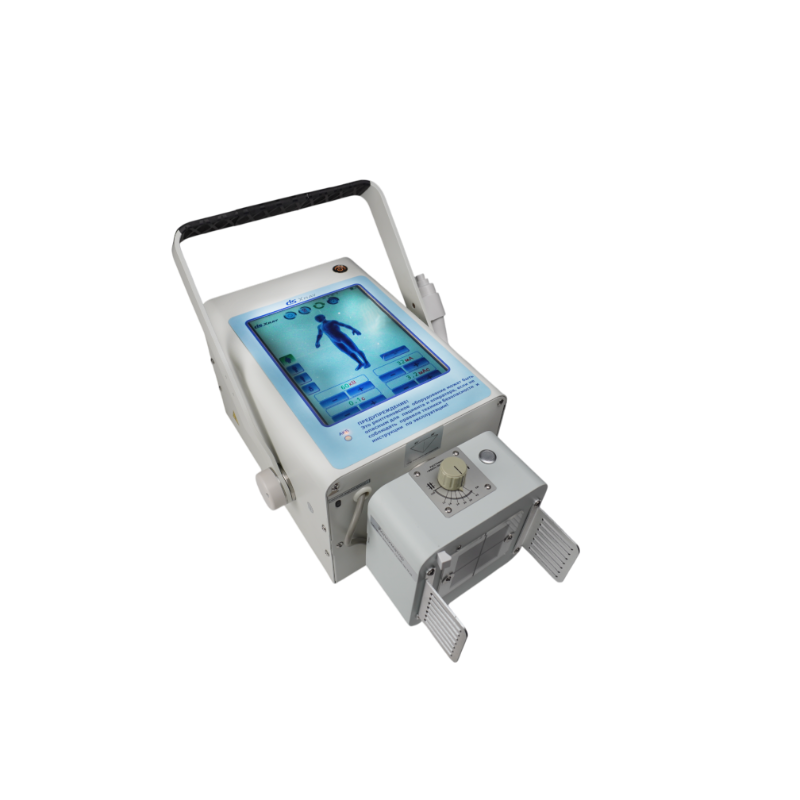

DS.Xray 8010tb portable X-ray unit — main view DS.Xray 8010tb portable X-ray unit — view 2 DS.Xray 8010tb portable X-ray unit — view 3 DS.Xray 8010tb portable X-ray unit — view 4
Portable X-ray unit

DS.Xray 8010tb

Flagship power with battery autonomy. A high-frequency monoblock generator for flagship-class diagnostics — resolution on par with stationary systems in a body you can carry with one hand.

8.0 kW
generator power
40–125 kV
anode voltage
10–125 mA
anode current
20 kg
weight

Technical specifications

Generator power8.0 kW
Anode voltage40–125 kV
Anode current10–125 mA
Exposure time0.01–6.3 s, step 0.001 s
Focal spotdual, small 0.6 mm
Weight20 kg
Power supplybattery
Control10″ touchscreen
RegistrationRU 2025/25979 (family-wide)

About DS.Xray 8010tb

DS.Xray 8010tb is a 8.0 kW high-frequency monoblock X-ray generator from the DS.Xray family — 11 portable units from 2.8 to 10 kW designed and serially produced by DS.Med. The 8.0 kW power class confidently handles the complete spectrum of examinations, including radiography of dense structures in adults. Exposure parameters and anatomical programs are set on the built-in 10-inch touchscreen — no external computer required.

The built-in battery pack delivers up to 500 exposures per charge, so the unit moves freely between operating rooms and wards all day without recharging.

The 600 kHz high-frequency inverter keeps anode voltage ripple to a minimum, and microprocessor correction every 1.7 µs ensures reproducible parameters from shot to shot. The dual focal spot lets the physician choose between maximum detail (0.6 mm) and full power on dense structures. The digital workflow is built on compatibility with wired (DR1717C, DR1717CH, DR1417CH) and wireless (DR1717WC, DR1717WCH, DR1417WCH) flat-panel detectors, and DS.Med backs every unit with the manufacturer’s warranty and spare parts in stock in Russia.

Key advantages

01
600 kHz inverter
Stable high-voltage output with microprocessor correction every 1.7 µs — reproducible parameters shot to shot
02
Dual focal spot
A small 0.6 mm spot for fine detail and a large spot for full power on dense structures
03
Battery autonomy
Up to 500 exposures per charge — a full day without a socket
04
DR detectors
Works with wired and wireless DR1717 / DR1417 panels

Frequently asked questions

Which digital detectors does DS.Xray 8010tb support?
The unit is compatible with wired (DR1717C, DR1717CH, DR1417CH) and wireless (DR1717WC, DR1717WCH, DR1417WCH) flat-panel detectors.
How long does DS.Xray 8010tb work on battery?
Up to 500 exposures on a single charge, depending on exposure settings — typically a full working day of imaging.
Which examinations does DS.Xray 8010tb cover?
The 8.0 kW generator confidently handles the complete spectrum of examinations, including radiography of dense structures in adults. Exposure times from 0.01 to 6.3 s produce sharp images even in patients unable to hold their breath.
Is the unit suitable for public procurement?
Yes. The entire DS.Xray family is covered by a single medical device registration (Roszdravnadzor RU 2025/25979), and DS.Med prepares the full documentation package for tenders.

Get a commercial proposal for DS.Xray 8010tb

Tell us about your department — we will recommend the right detector and configuration and reply within one business day.
