DS.Xray 3510tb portable X-ray unit

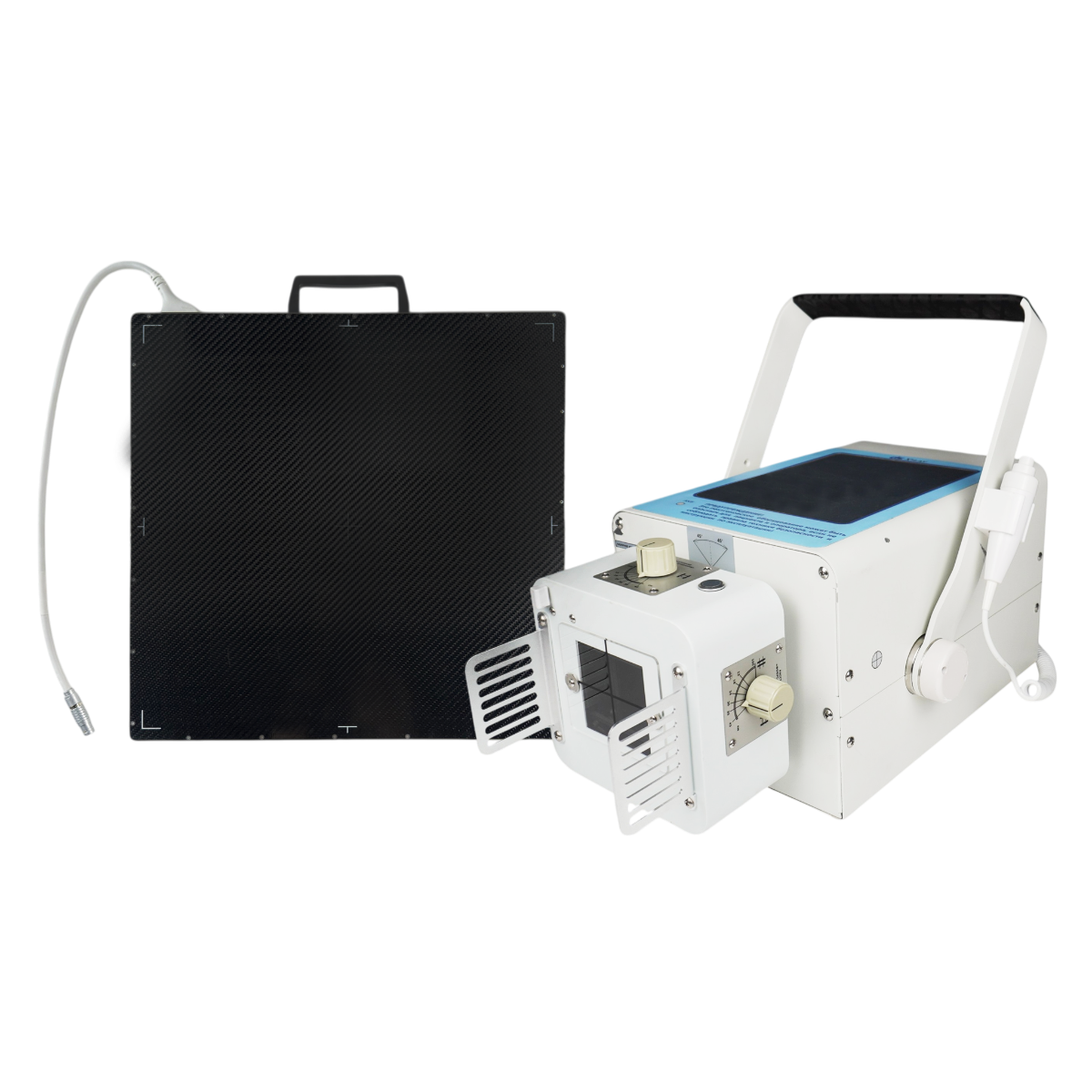

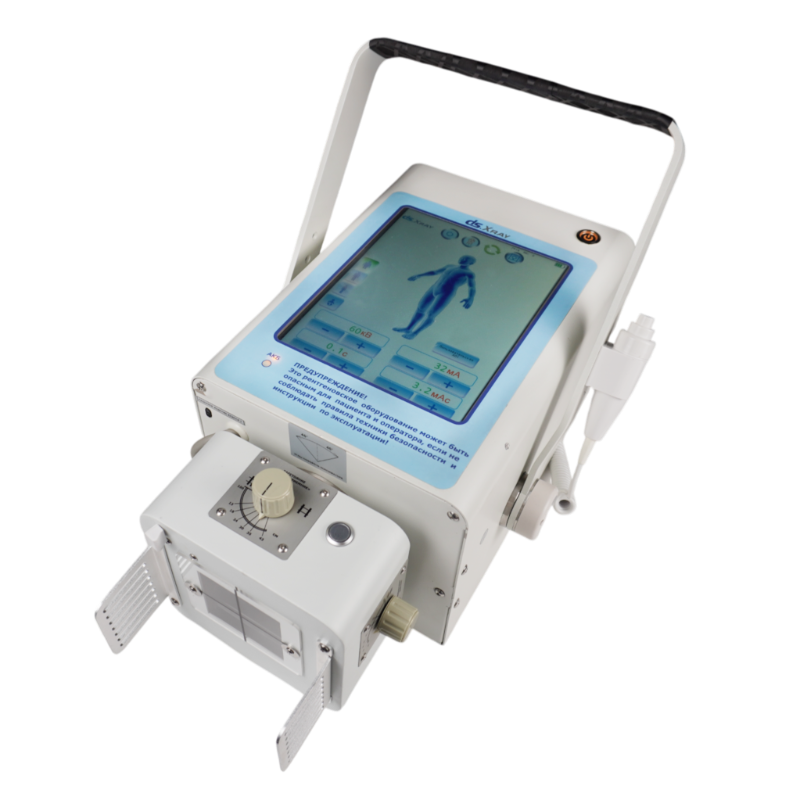

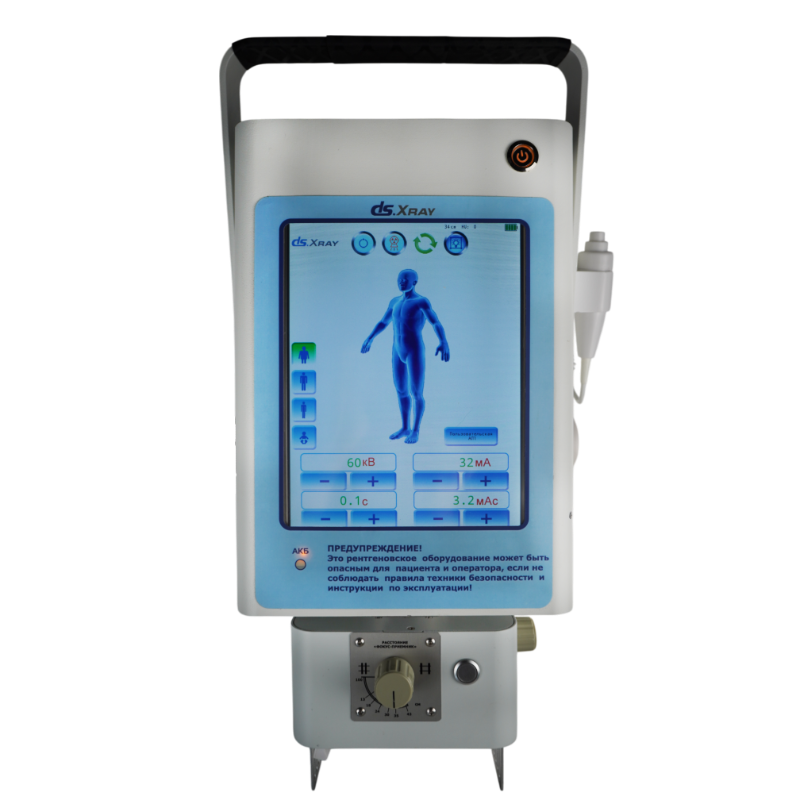

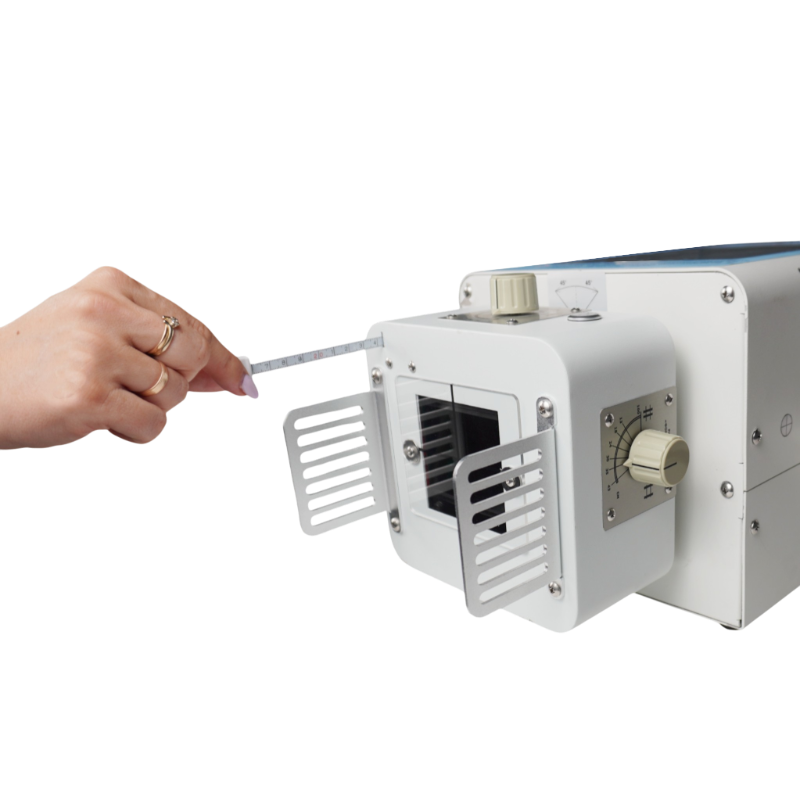

DS.Xray 3510tb portable X-ray unit — main view DS.Xray 3510tb portable X-ray unit — view 2 DS.Xray 3510tb portable X-ray unit — view 3 DS.Xray 3510tb portable X-ray unit — view 4
Portable X-ray unit

DS.Xray 3510tb

Battery version with extended 10–80 mA current range. A high-frequency monoblock generator for ward diagnostics — resolution on par with stationary systems in a body you can carry with one hand.

3.5 kW
generator power
40–110 kV
anode voltage
10–80 mA
anode current
20 kg
weight

Technical specifications

Generator power3.5 kW
Anode voltage40–110 kV
Anode current10–80 mA
Exposure time0.01–6.3 s, step 0.001 s
Focal spotdual, small 0.6 mm
Weight20 kg
Power supplybattery, up to 28 h
Controlcontrol panel
RegistrationRU 2025/25979 (family-wide)

About DS.Xray 3510tb

DS.Xray 3510tb is a 3.5 kW high-frequency monoblock X-ray generator from the DS.Xray family — 11 portable units from 2.8 to 10 kW designed and serially produced by DS.Med. The 3.5 kW power class confidently handles bedside imaging of non-critical patients, extremities and chest radiography. Exposure parameters are set directly on the control panel.

The built-in battery pack delivers up to 28 hours of autonomous operation or about 110 exposures per charge — enough for a full shift of field diagnostics, home visits or ward rounds without a single wall socket.

The 600 kHz high-frequency inverter keeps anode voltage ripple to a minimum, and microprocessor correction every 1.7 µs guarantees reproducible parameters from shot to shot. The dual focal spot lets the physician choose between maximum detail (0.6 mm) and full power on dense structures. The digital workflow is built on compatibility with wired and wireless flat-panel detectors (DR1717C, DR1717CH, DR1417CH) and direct PACS/HIS integration via SDK — and DS.Med backs every unit with its own service engineers, spare parts in stock and on-site staff training.

Key advantages

01
600 kHz inverter
Stable high-voltage output with microprocessor correction every 1.7 µs — reproducible parameters shot to shot
02
Dual focal spot
A small 0.6 mm spot for fine detail and a large spot for full power on dense structures
03
Battery autonomy
Up to 28 hours or ~110 exposures per charge — built for field work
04
DR detectors and PACS
Works with DR1717C / DR1717CH / DR1417CH panels; SDK integration with PACS and HIS

Frequently asked questions

Which digital detectors does DS.Xray 3510tb support?
The unit is compatible with wired and wireless flat-panel detectors, including DR1717C, DR1717CH and DR1417CH. SDK support provides direct integration with PACS archives and hospital information systems.
How long does DS.Xray 3510tb work on battery?
Up to 28 hours of autonomous operation or about 110 exposures on a single charge, depending on exposure settings.
Which examinations does DS.Xray 3510tb cover?
The 3.5 kW generator confidently handles bedside imaging of non-critical patients, extremities and chest radiography. Exposure times from 0.01 to 6.3 s produce sharp images even in patients unable to hold their breath.
Is the unit suitable for public procurement?
Yes. The entire DS.Xray family is covered by a single medical device registration (Roszdravnadzor RU 2025/25979), and DS.Med prepares the full documentation package for tenders.

Get a commercial proposal for DS.Xray 3510tb

Tell us about your department — we will recommend the right detector and configuration and reply within one business day.
