DS.Xray 10010t portable X-ray unit

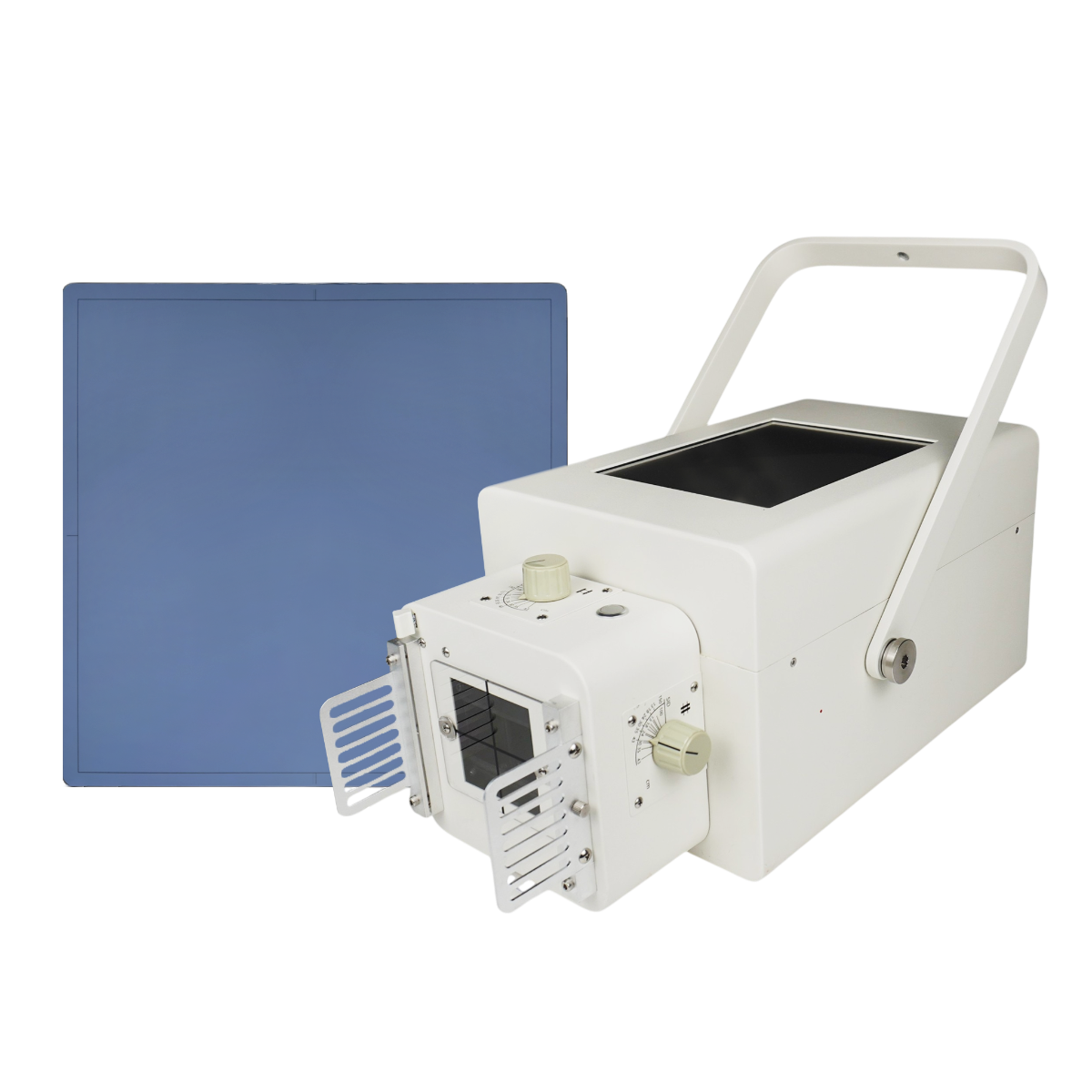

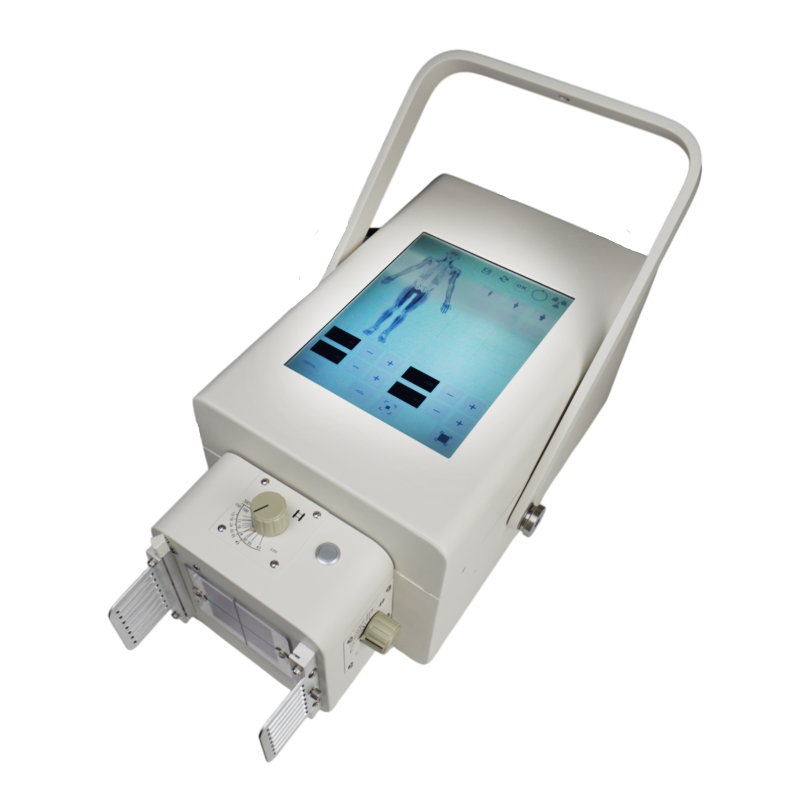

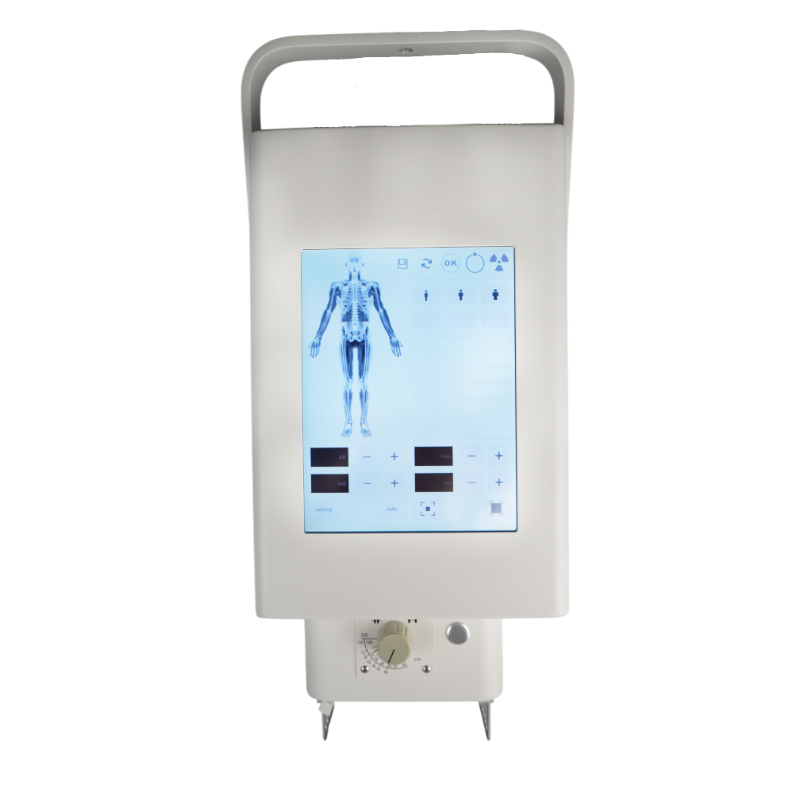

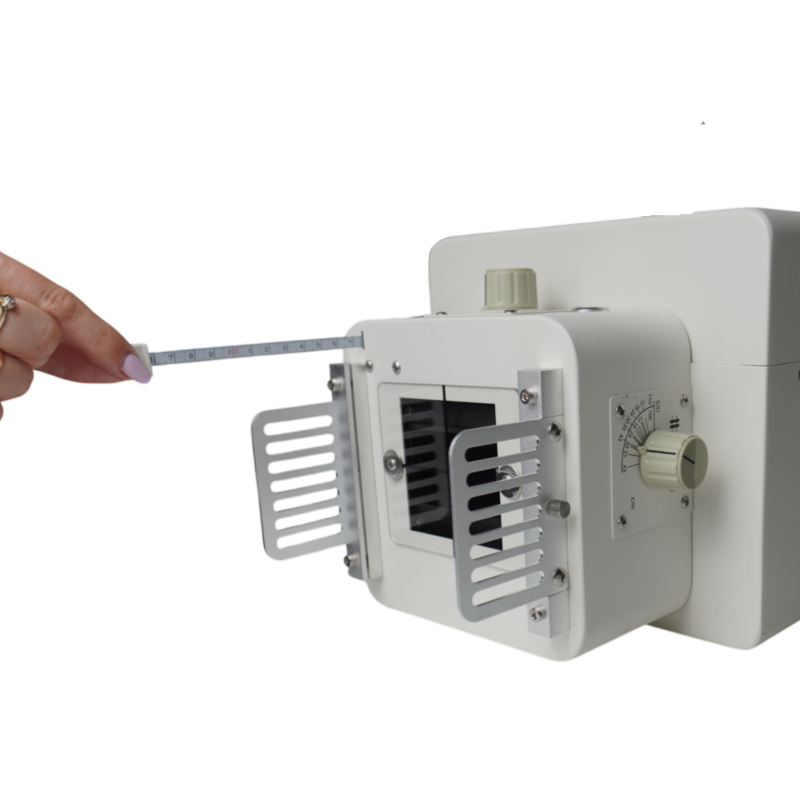

DS.Xray 10010t portable X-ray unit — main view DS.Xray 10010t portable X-ray unit — view 2 DS.Xray 10010t portable X-ray unit — view 3 DS.Xray 10010t portable X-ray unit — view 4
Portable X-ray unit

DS.Xray 10010t

Full ward-machine replacement — 160 mA anode current. A high-frequency monoblock generator for flagship-class diagnostics — resolution on par with stationary systems in a body you can carry with one hand.

10.0 kW
generator power
40–125 kV
anode voltage
5–160 mA
anode current
18 kg
weight

Technical specifications

Generator power10.0 kW
Anode voltage40–125 kV
Anode current5–160 mA
Exposure time0.01–6.3 s, step 0.001 s
Focal spotdual, small 0.6 mm
Weight18 kg
Power supplymains
Control10″ touchscreen
RegistrationRU 2025/25979 (family-wide)

About DS.Xray 10010t

DS.Xray 10010t is a 10.0 kW high-frequency monoblock X-ray generator from the DS.Xray family — 11 portable units from 2.8 to 10 kW designed and serially produced by DS.Med. The 10.0 kW power class confidently handles the complete spectrum of examinations, including radiography of dense structures in adults. Exposure parameters and anatomical programs are set on the built-in 10-inch touchscreen — no external computer required.

The mains-powered design (index "t") keeps the price down and is the rational choice for departments where a wall socket is always within reach — and if autonomy is ever needed, the battery sibling DS.Xray 10010tb offers the same generator off the grid.

The 600 kHz high-frequency inverter keeps anode voltage ripple to a minimum, and microprocessor correction every 1.7 µs guarantees reproducible parameters from shot to shot. The dual focal spot lets the physician choose between maximum detail (0.6 mm) and full power on dense structures. The digital workflow is built on compatibility with wired and wireless flat-panel detectors (DR1717C, DR1717CH, DR1417CH) and direct PACS/HIS integration via SDK — and DS.Med backs every unit with its own service engineers, spare parts in stock and on-site staff training.

Key advantages

01
600 kHz inverter
Stable high-voltage output with microprocessor correction every 1.7 µs — reproducible parameters shot to shot
02
Dual focal spot
A small 0.6 mm spot for fine detail and a large spot for full power on dense structures
03
Mains-powered economy
The most cost-effective way to get this power class into your department
04
DR detectors and PACS
Works with DR1717C / DR1717CH / DR1417CH panels; SDK integration with PACS and HIS

Frequently asked questions

Which digital detectors does DS.Xray 10010t support?
The unit is compatible with wired and wireless flat-panel detectors, including DR1717C, DR1717CH and DR1417CH. SDK support provides direct integration with PACS archives and hospital information systems.
Can DS.Xray 10010t work without mains power?
This is a mains-powered version. If your workflow requires autonomy, choose the battery sibling DS.Xray 10010tb — the same generator with up to 500 exposures per charge.
Which examinations does DS.Xray 10010t cover?
The 10.0 kW generator confidently handles the complete spectrum of examinations, including radiography of dense structures in adults. Exposure times from 0.01 to 6.3 s produce sharp images even in patients unable to hold their breath.
Is the unit suitable for public procurement?
Yes. The entire DS.Xray family is covered by a single medical device registration (Roszdravnadzor RU 2025/25979), and DS.Med prepares the full documentation package for tenders.

Get a commercial proposal for DS.Xray 10010t

Tell us about your department — we will recommend the right detector and configuration and reply within one business day.

Request a quote
